compact 2.35 MP area scan camera
The GO-2401M-PGE-1 is a compact industrial area scan camera delivering an excellent blend of size, versatility, and performance, at a price below that of its sister models in the GO-2400 family. It delivers 2.35-megapixel monochrome output at up to 41 fps while offering exceptional low-noise image quality for a wide range of machine vision applications.
Small and lightweight

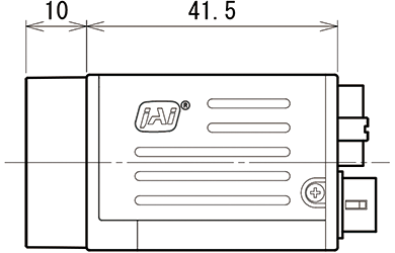

Like all Go Series cameras, the GO-2401-PGE-1 measures 29 x 29 x 41.5 mm (excluding lens mount) and weighs only 65 grams enabling it to fit into small spaces or be mounted on vehicles or robot arms where size and weight are critical.
High image quality and dynamic range
The GO-2401-PGE-1 leverages the low-noise pixel design of the Sony Pregius IMX249 CMOS imager. This imager provides the same excellent sensitivity and native dynamic range as the IMX174 used in the GO-2400 models – but at a more economical price point.
Proven reliability in industrial environments
Despite its small size and weight, the GO-2401-PGE-1 is built for the real world, with sturdy housings and extensive shock (80G) and vibration (10G) testing to deliver one of the best MTBF ratings of any small camera – over 180,000 hours. A 3-year warranty is standard.
Here are a few applications where Go Series industrial cameras are especially suitable
The Go Series cameras are the perfect starting point for a wide range of machine vision applications.
From vision-guided robot arms to autonomous vehicles, Go Series cameras provide high quality images in a compact yet industrial-grade form factor.
Durable Go Series cameras can be configured for a wide range of automotive and automotive parts inspections either as off-the-shelf components or in optional IP67 enclosures.
For simple to complex barcode and OCR-type applications, Go Series cameras provide the desired combination of high image quality and entry-level price.
Go Series cameras fit nicely into systems for inspecting printed circuit boards, sorting small parts, and other electronics-related applications.
Vision systems for track and trace, pill sorting, inspecting vials and ampoules, and many other applications, can all utilize Go Series cameras.
Production quality control
Go Series cameras are the perfect “eyes” for many different types of quality control inspection systems.
How our cameras optimized the biscuit production for Nestlé
Making it very suitable for demanding line scan applications such as web inspection (paper, plastic), print inspection, document scanning, parcel/postal sorting, electronic/wafer inspection, and sport imaging finish line applications.
