The GO-2400M-PGE-1 is a compact industrial area scan camera delivering an excellent blend of size, versatility, and performance, all at an entry-level price. It delivers 2.35-megapixel monochrome output at up to 48 fps while offering exceptional low-noise image quality for a wide range of machine vision applications.

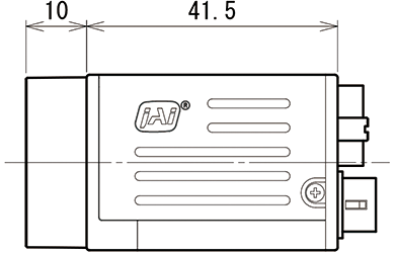

Like all Go Series cameras, the GO-2400-PGE-1 measures 29 x 29 x 41.5 mm (excluding lens mount) and weighs only 65 grams enabling it to fit into small spaces or be mounted on vehicles or robot arms where size and weight are critical.
The GO-2400-PGE-1 leverages the low-noise pixel design of the Sony Pregius IMX174 CMOS imager to provide excellent sensitivity and a native dynamic range of more than 72 dB – perfect for a wide range of machine vision applications.
Despite its small size and weight, the GO-2400-PGE-1 is built for the real world, with sturdy housings and extensive shock (80G) and vibration (10G) testing to deliver one of the best MTBF ratings of any small camera – over 180,000 hours. A 3-year warranty is standard.
2.35-megapixel camera with 5.86-micron pixels and 1/1.2” optical format.
Power over GigE Vision interface supporting long cable lengths and network configurations.
Monochrome output.
Temporal dark noise rating <7e-.
38 µs minimum exposure time.
Single and Multi-ROI modes for flexible windowing and use of 2/3” or smaller optics.
Industrial grade performance with 80G shock, 10G vibration, and over 180,000 hrs. MTBF ratings.
Go Series
GO-2400M-PGE-1
Area Scan
Mono
Visible + NIR
2.4 MP
1936 x 1216 px
48 fps
Yes
GigE Vision 1-Cable (PoE)
1xCMOS
IMX174
1/1.2 inch
5.86 x 5.86 µm
Global shutter
13.4 mm
11.3 x 7.1 mm
29 x 29 x 51.5 mm
65 g
8/10/12-bit *
C-mount
3.3 Watt
-5°C to +45°C
* Some video processing functions not available with 12-bit output
The PD-6U power supply can be used to power most Go Series and Go-X Series cameras as an alternative to powering over the data interface. The power supply is RoHS compliant and conforms to key EMI and EMS standards. It is available in two versions:
With 6-pin Hirose connector to camera With flying leads that can be wired to the power lines on a separate I/O cable (see 6P-02S for an example of such a cable)
Both models feature U.S. style wall plugs. The power supply converts 50 Hz to 60 Hz AC input to 12V DC (1.3A) output.
Download Datasheet
The 6P-02S-GO cable features flying leads on one end and a Hirose 6-pin connector on the other wired to match the pin-out of JAI GO Series cameras with 6-pin connectors. The flying leads enable power to be supplied via two of the Hirose pins, while the remaining wires/pins can be utilized to access various I/O functions of JAI cameras (see individual camera datasheets/ manuals for functions accessible through the Hirose connectors).
The cables can be used with JAI’s own “flying leads” power supplies, or with third-party or custom power supply systems.
Tripod adapter features mounting holes with 20 mm spacing to fit bottom mounting holes on Go Series and Go-X Series housings. (Note: can be used with top mounting holes on Go-X Series models with Pregius S sensors.)
Standard 1/4-20 attachment to tripods. Includes M3 screws (Depth 5). Only use the supplied screws or other screws having the proper length. Using longer screws can damage internal circuit boards.
Download 2D CAD drawing.
The HR10A-7P-6S is a universal connector used for power and control signals for most JAI Go Series and Go-X Series cameras and can also be used with serial communication (RS-232C) connectors on some CV Series models. The connector is a female plug, with sockets, that mates to the connector on the back of the camera. It has soldering cups for easy assembly of custom cables.
The Go Series cameras are the perfect starting point for a wide range of machine vision applications.
From vision-guided robot arms to autonomous vehicles, Go Series cameras provide high quality images in a compact yet industrial-grade form factor.
Durable Go Series cameras can be configured for a wide range of automotive and automotive parts inspections either as off-the-shelf components or in optional IP67 enclosures.
For simple to complex barcode and OCR-type applications, Go Series cameras provide the desired combination of high image quality and entry-level price.
Go Series cameras fit nicely into systems for inspecting printed circuit boards, sorting small parts, and other electronics-related applications.
Vision systems for track and trace, pill sorting, inspecting vials and ampoules, and many other applications, can all utilize Go Series cameras.
Go Series cameras are the perfect “eyes” for many different types of quality control inspection systems.
