GO-2400C-PGE-1
compact 2.35 MP area scan camera

The GO-2400C-PGE-1 is a compact industrial area scan camera delivering an excellent blend of size, versatility, and performance, all at an entry-level price. It delivers 2.35-megapixel raw Bayer color output at up to 48 fps while offering exceptional low-noise image quality for a wide range of machine vision applications.

Small and lightweight

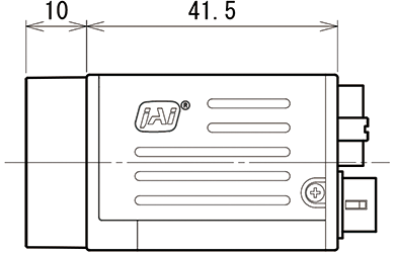

Like all Go Series cameras, the GO-2400-PGE-1 measures 29 x 29 x 41.5 mm (excluding lens mount) and weighs only 65 grams enabling it to fit into small spaces or be mounted on vehicles or robot arms where size and weight are critical.

High image quality and dynamic range

The GO-2400-PGE-1 leverages the low-noise pixel design of the Sony Pregius IMX174 CMOS imager to provide excellent sensitivity and a native dynamic range of more than 72 dB – perfect for a wide range of machine vision applications.

Proven reliability in industrial environments

Despite its small size and weight, the GO-2400-PGE-1 is built for the real world, with sturdy housings and extensive shock (80G) and vibration (10G) testing to deliver one of the best MTBF ratings of any small camera – over 180,000 hours. A 3-year warranty is standard.

Features
Specifications
Downloads
Accessories

Features

2.35-megapixel camera with 5.86-micron pixels and 1/1.2” optical format.
Power over GigE Vision interface supporting long cable lengths and network configurations.
Raw Bayer color output.
Temporal dark noise rating <7e-.
38 µs minimum exposure time.
Single and Multi-ROI modes for flexible windowing and use of 2/3” or smaller optics.
Industrial grade performance with 80G shock, 10G vibration, and over 180,000 hrs. MTBF ratings.

Specifications

Product Line

Go Series

Model

GO-2400C-PGE-1

Type

Area Scan

Color / Mono

Color

Light Spectrum

Visible

Resolution

2.4 MP

Resolution WxH

1936 x 1216 px

Frame rate / Line rate

48 fps

ROI

Yes

Interface

GigE Vision 1-Cable (PoE)

Sensors

1xCMOS

Sensor Name

IMX174

Optical Format

1/1.2 inch

Cell Size WxH

5.86 x 5.86 µm

Shutter type

Global shutter

Sensor Diagonal

13.4 mm

Active Sensor Dimensions WxH

11.3 x 7.1 mm

Camera Dimensions HxWxL

29 x 29 x 51.5 mm

Weight

65 g

Video Output

8/10/12-bit *

Lens Mount

C-mount

Power Consumption

3.3 Watt

Operating Temperature (ambient)

-5°C to +45°C

* Some video processing functions not available with 12-bit output

Downloads

Manual & datasheet

Software

Compliance documents

GPIO 6-pin Input/Output connector

GPIO & Power 6-pin Input/Output female connector and cord with flying leads. (LKK-IO-6PF-DM).

Connector type end A: 6-pin female Straigth (Hirose equivalent).
Connector type end B: Flying leads.

Item number:
31017437: GPIO6p FemFlyingLeads 0.5m LKK-IO-6PF-0.5 (0.5 meter cable).

31017438: GPIO6p FemFlyingLeads 2m LKK-IO-6PF-02 (2 meter cable).

31017439: GPIO6p FemFlyingLeads 10m LKK-IO-6PF-10 (10 meter cable).

Note: This item can ONLY be order in connection with the camera (Not available for stand alone orders).

Download datasheet

Power supply unit with 6-pin connector cable

Power supply unit with 6-pin female connector cable - without power cord.
(LKK-PSU-6PF-1.25)

Hirose equivalent connector with cable length of 1.25 meters.

Item number - Power Supply:

31017430: PSU 6-pin 1.25m LKK-PSU-6PF-1.25 (1.25 meter cable length)

If you plan to include a power supply when ordering our cameras, please remember to also order the appropriate power cord for the power supply.
(Power cords are sold separately from the power supply).

Item numbers - Power Cords:

31017432 (US/Japan): CordPSUTypeA(USJP)1.2m LKK-PSU-PWR-A-1.2 (1.2 meter cable lenght).

31017433 (China): CordPSUTypeI(CN) 1.2m LKK-PSU-PWR-I-1.2 (1.2 meter cable lenght).

31017434 (Europe/Korea): CordPSUTypeC(Euro) 1.5m LKK-PSU-PWR-C-1.5 (1.5 meter cable lenght).

Note: Power supply item and power cords item can ONLY be order in connection with the camera (Not available for stand alone orders).

Download datasheet

MP-43 Tripod Mounting Plate

Tripod adapter features mounting holes with 20 mm spacing to fit bottom mounting holes on Go Series and Go-X Series housings. (Note: can be used with top mounting holes on Go-X Series models with Pregius S sensors.)

Standard 1/4-20 attachment to tripods. Includes M3 screws (Depth 5). Only use the supplied screws or other screws having the proper length. Using longer screws can damage internal circuit boards.

Download 2D CAD drawing.
